This feature is available with Artica version 1.4.112818
If you are under this release you need to upgrade your Artica version.
If this version is not released use the How to upgrade Artica to a nightly build ?
This new version let you to manage Q.O.S (Quality of Service) trough Artica web console.
This can be performed if iproute2 package is already installed on your system (Installed default in Ubuntu servers).

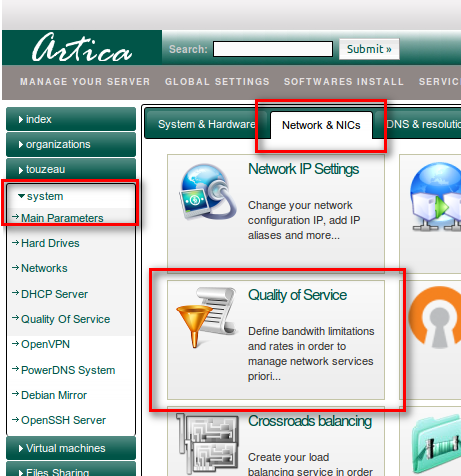

- On the left menu, choose Main Parameters/Network & NICS

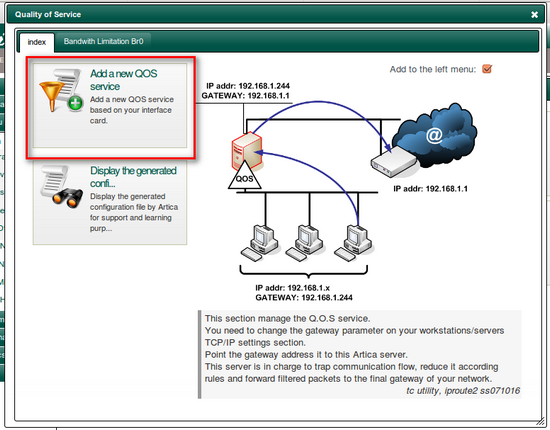

- Click on Quality Of Service icon

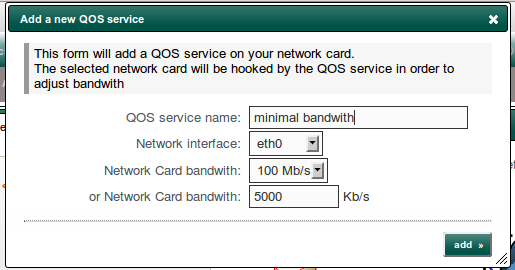

Click on Add a new QOS service in order to create the first "root" of your QOS service
Define the container bandwith associated with your Network card

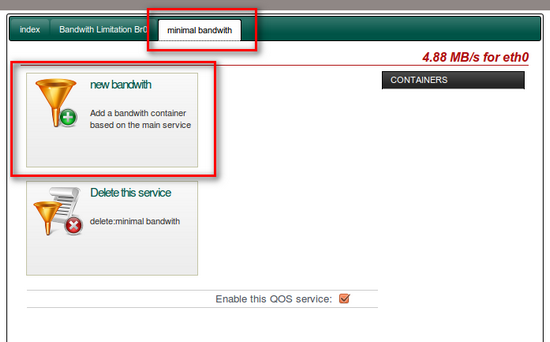

- A new tab is created
- It allow you to create container that will contains bandwith limitations from the bandwith defined
for your network card and rules that enables the bandwith limitation rule.

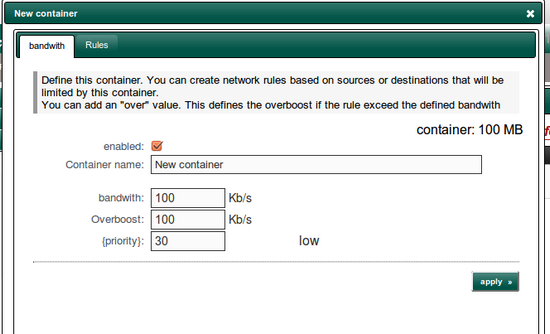

- Click on "New bandwith" to create a container rule.
- Define limits and save.

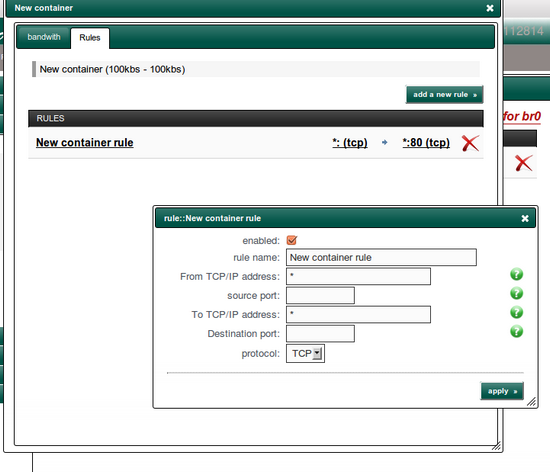

- Return back to this new rule, you will have a new tab called "Rules"
This section allow you to define rules from source IP addresses/ports and/or destinations IP addresses/ports in order to match the bandwith rule.
